DUAL Inverter Compressor™ With 10 Year Warranty
-
10 Year Warranty

Fast Cooling & Energy Saving

DUAL Inverter Compressor™

GEN Mode

Low Noise

Volt Care

Simple and Slim Design with Hidden Display

Quick and Easy Installation

Gold Fin™
-
Vertical 6 Steps Louver Control
Users can choose the vane direction among 6 preset positions to meet the exact wind blow direction you desire.
-
Auto Cleaning
The comprehensive auto cleaning function prevents the forming of bacteria and mold on the heat exchanger and thus provides a more pleasant and comfortable environment for the user.
-
Silent Mode
In Silent Mode, the overall sound level of the outdoor unit drops by up to 3dB and the sound level of the indoor unit also decreases.
-
Comfort Sleep
Comfort Sleep mode ensures the utmost comfort sleep environment by automatically adjusting 3 different functions (Indirect airflow/7hr off time set/Soft wind & sleep time logic), with one click.
DIMENSIONS

CATEGORY
-
- Cooling Capacity
- 5,275W/18,000Btu/h.
- Max Cooling Capacity
- 19,910Btu/h.
-
- Power Input (Cooling)
- 1,640W
- Running Current (Cooling)
- 7.6A
-
- EER
- 3.21W/W/10.98Btu/h.W
- Power Supply
- 1/220-240V/50Hz
-
- Air Flow Rate (Indoor, Max)
- 18.0m³/min
- Air Flow Rate (Outdoor, Max)
- 32.0m³/min
-
- Moisture Removal
- 1.3l/h.
- Sound Level (Indoor, H/M/L/SL)
- 44/39/36/31 dB (A)
-
- Sound Level (Outdoor, Max )
- 54dB (A)
- Refrigerant (Type)
- R410A
-
- Refrigerant (Charge (at 7.5 m))
- 1,150g
- Additional Refrigerant Charge
- 20g/m
-
- Power Supply Cable
- 3 x 1.5 (No x mm²)
- Power and Communication Cable
- 4 x 1.5 (No x mm²)
-
- Piping Connections (Liquid Side)
- 6.35mm
- Piping Connections (Gas Side)
- 12.7mm
-
- Drain Hose Size (O.D/I.D)
- 21.5/16.0 (0.85/0.62) mm (in)
- Pipe Length (Standard/Max)
- 7.5/20 (24.6/65.6) m (ft)
-
- Fan (Indoor) Type
- Cross Flow Fan
- Fan (Outdoor) Type
- Fan, Propeller
-

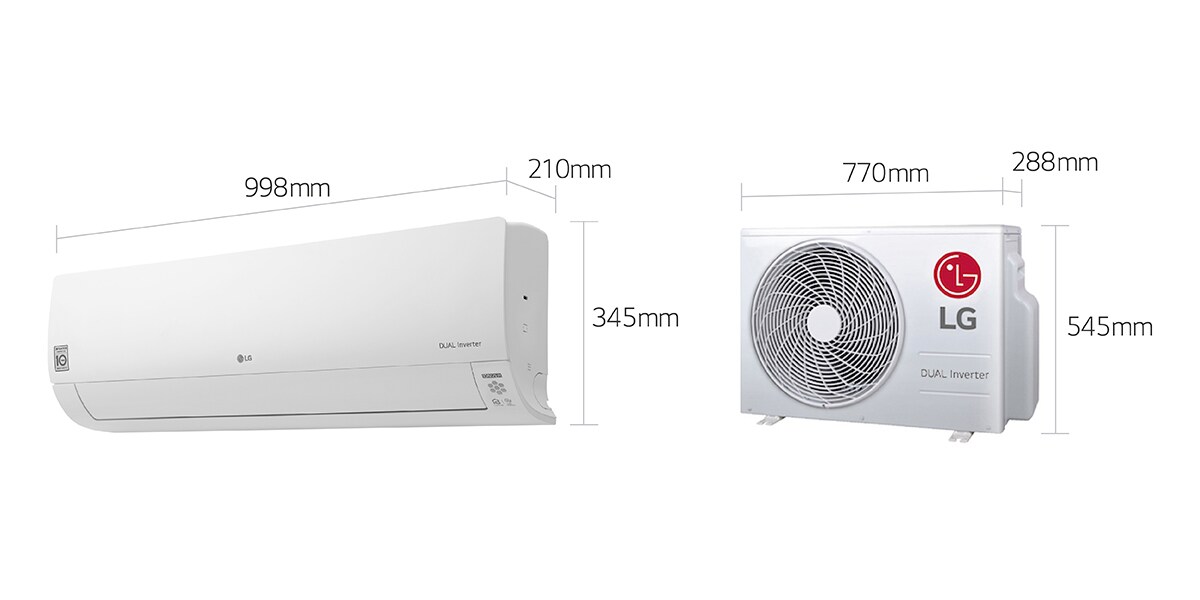

- Dimensions (Indoor (WxHxD))
- 998 x 345 x 210 mm
- Dimensions (Outdoor (WxHxD))
- 770 x 545 x 288 mm
-
- Net Weight (Indoor)
- 11.3 (24.9) kg (lb)
- Net Weight (Outdoor)
- 33 (72.8) kg (lb)
